Thermo 2000 Proudly Canadian, leading in design and manufacturing for 40 years.

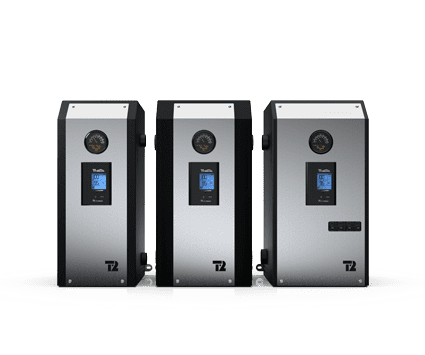

The BTH Ultra are the go-to solution for Electric Boiler;'s capable of heating condominiums, single family homes or commercial buildings. The Ultra-silent operations along with compact casing provide a wide variety of performance levels from 7kW to 36kW and can be ordered in mulitple voltage options(call us to inquire)
These models include:

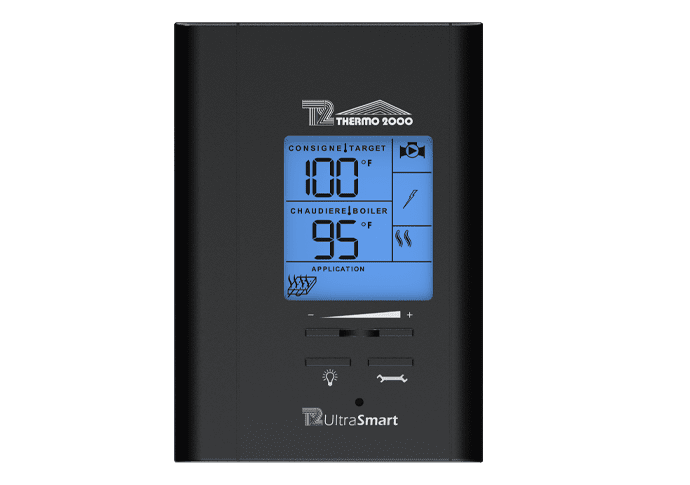

· Electric elements controlled by the UltraSmart electronic control
· Insulated R12
· 24 V electrical supply for thermostat and other accessories
· Pump relay and 120Vac pump supply
· Tridicator
· Outdoor temperature sensor included
· High-limit control for temperature
· Safety valve 30 psi and drain valve
· Controller allowing boiler reset temperature vs outdoor temp. and modulation of the stages.
· Breakers on model BTH ULTRA 33A and 36A
· Can directly be installed in Dual-Energy without the external CBE-EM controller.
· ASME certification and CRN on models BTHULTRA 33A and BTHULTRA 36A
More information on the BTH ultra here
| Model | kW | BTU/hour | Amp | |
| BTHULTRA 12 | 12 | 40944 | 50 | |
| BTHULTRA 15 | 15 | 51180 | 63 | |
| BTHULTRA 18 | 18 | 61416 | 75 | |
| BTHULTRA 20 | 20 | 68240 | 83 | |
| BTHULTRA 24 | 24 | 81888 | 100 | |
| BTHULTRA 27 | 27 | 92124 | 113 | |
| BTHULTRA 29 | 29 | 98948 | 121 | |
| BTHULTRA 33A | 33 | 112596 | 138 | |
| BTHULTRA 36A | 36 | 122832 | 150 |
| Data | 12 - 24KW | 27 - 36KW | |
| Supply | 1 '' NPT F | 1 1/4 '' NPT F | |
| Return | 1 '' NPT F | 1 1/4 '' NPT F | |
| Height | 21 1/2'' | 21 1/2'' | |
| Width | 8 7/8'' | 11'' | |
| Length | 11 3/4'' | 11 3/4'' | |
| Reservoir volume | 2 gallons | 3 gallons | |
| Weight | 63 lb | 75 lb | |
