Samsung Mini-split Heat Pump | Max Heat 3.0
Yes, this product is Energy Star certified!
Yes, this product may be eligible for the Canada Greener Homes Grant.
Click to learn more about the Canadian Greener Homes Initiative and product eligibility here.
Click here to learn more how warranty works.
Not sure if this product is right for you? Require advice selecting the correct unit?
Samsung Max Heat 3.0 Ductless Mini-Splits - Cold-weather Designed Heat Pumps
Samsung HVAC’s Max Heat 3.0 mini split heat pumps are redesigned to deliver higher efficiency & comfort. Compatible with the WindFree™* 3.0 indoor unit, the Max Heat® unit has the ability to keep you comfortable in any climate. Even those reaching -22°F (-30°C).
With an outdoor heat pump unit rated for heating in as low as -30ᵒC and air conditioning in outdoor temperatures up to 46ᵒC, the Max Heat 3.0 is a perfect mini-split ductless system for use across Canada. With sizes from 9,000 BTU/hr up to 24,000 BTU/hr, there is a Max Heat 3.0 ductless split system for every room or living space in your home.
Key features and benefits of the Samsung Max Heat 3.0 ductless mini-split system include:
-
Heating and cooling in a single system
- Efficient operation, up to 24.5 SEER, will save you money on heating and cooling bills all year long
- Max Heat is designed for cold climates, providing high heating capacity at temperatures as low as -30°C (-20°F)
- Air conditioning in temperatures as high as +46°C (115°F)
- Integral base pan heater to defrost and drain water to avoid ice build-up

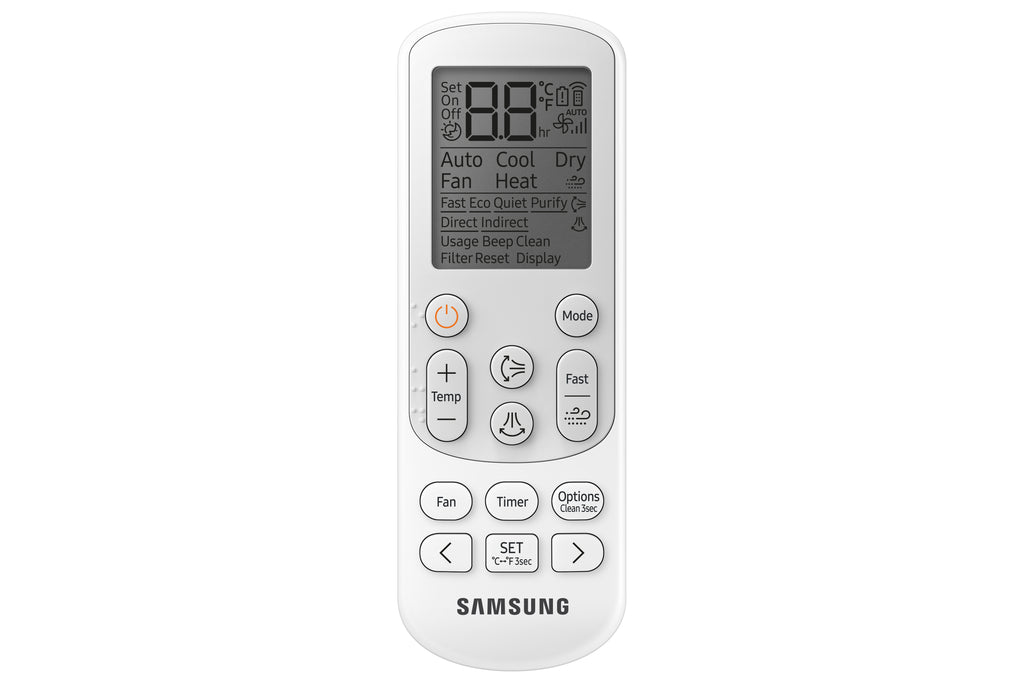

- Delivered with remote control with functionality including:
- On/off option
- Fan speed control
- Temperature settings
- Wind direction control
- Scheduling
- Good sleep mode
- Standard with built-in WiFi capability for remote temperature and setting adjustments via the SmartThings Android and iOS apps
- All models are Energy Star certified, the gold standard in energy efficiency ratings
- Pre-charged with R410A for up to 25ft lines
- Comes standard with a re-usable, washable filter
- (optional) compatible with wired remote control options
More information regarding Samsung Max Heat 3.0 mini-split heat pumps can be found here:
Samsung Max Heat 3.0 Mini Split Heat Pump Product Page
Product Details & Sizing:
Model |
Max Heating Capacity |
Cooling Capacity |
Max. SEER Rating |
HSPF2 |
|
AR09CSDABWKNCV (indoor unit) AR09CSDACWKXCV (outdoor unit) |
11,000 BTU/hr | 9,000 BTU/hr | 24.5 |
10.5 |
|
AR12CSDABWKNCV (indoor unit) AR12CSDACWKXCV (outdoor unit) |
21,500 BTU/hr | 15,000 BTU/hr | 23.0 |
10.5 |
|
AR15CSDABWKNCV (indoor unit) AR15CSDACWKXCV (outdoor unit) |
35,000 BTU/hr | 21,000 BTU/hr | 21.5 | 10.8 |
|
AR18CSDABWKNCV (indoor unit) AR18CSDAEWKXCV (outdoor unit) |
41,000 BTU/hr | 25,000 BTU/hr | 21.0 |
9.7 |
|
AR24CSDABWKNCV (indoor unit) AR24CSDAEWKXCV (outdoor unit) |
42,500 BTU/hr | 31,700 BTU/hr | 20.0 |
9.5 |
